Quick Views in Cisco UCSM for FI and Service Profile Throughput and Balance

When getting the idea how traffic is flowing through a UCS first I look at the Equipment/Main Topology View to see the big picture.

20ChassisUCSMainTopologyView

Second go to Equipment/Chassis/Chassis/HybridDisplay to see how each chassis is uplinked to FI’s

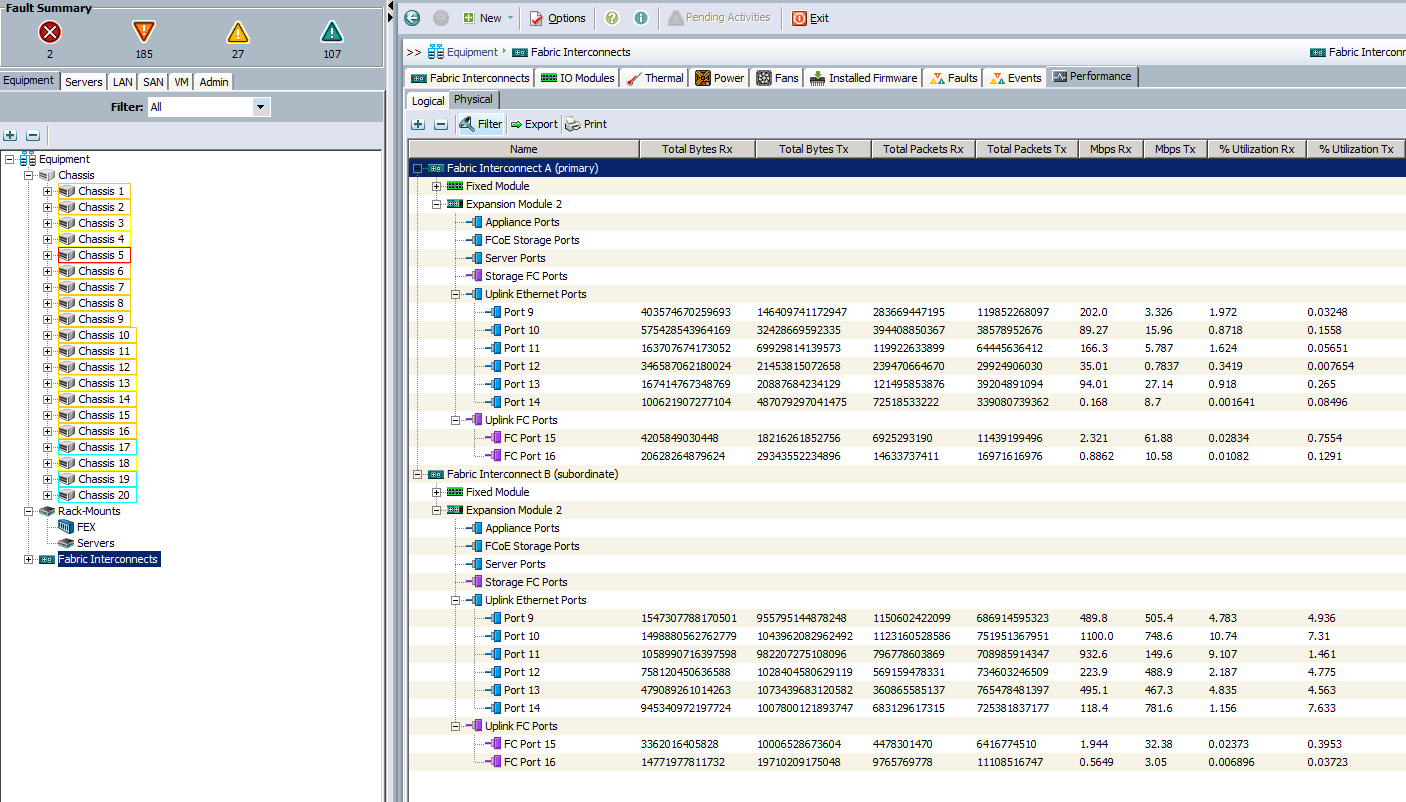

EquipmentChassisChassisHybridDisplayThird go to Equipment/Fabric Interconnects and expand uplinks for FIA and FIB. This will show total and balance of traffic through FI’s.

Physical

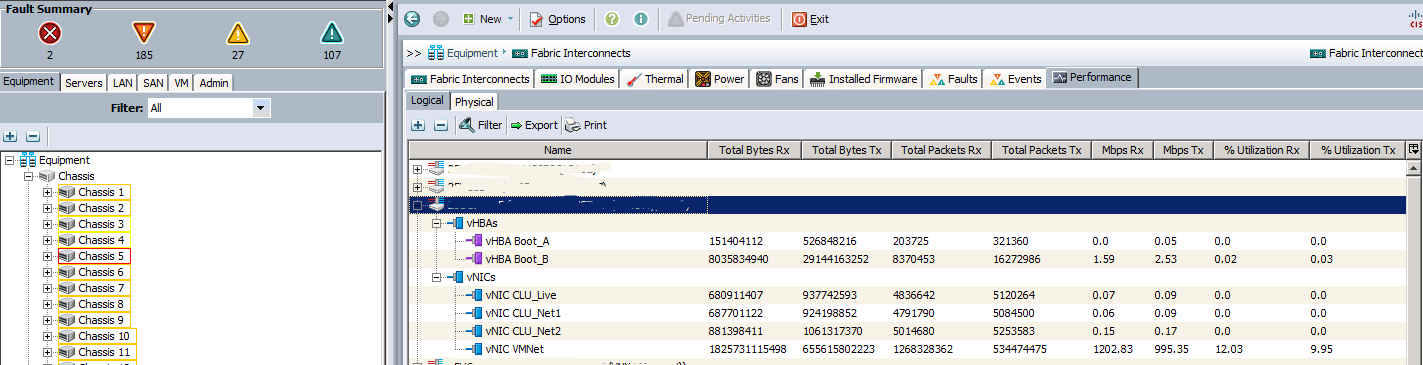

Fourth break down the Service Profiles a see what vNIC’s are in play.

LogicalAnd now you know how traffic is moving through the UCS.
